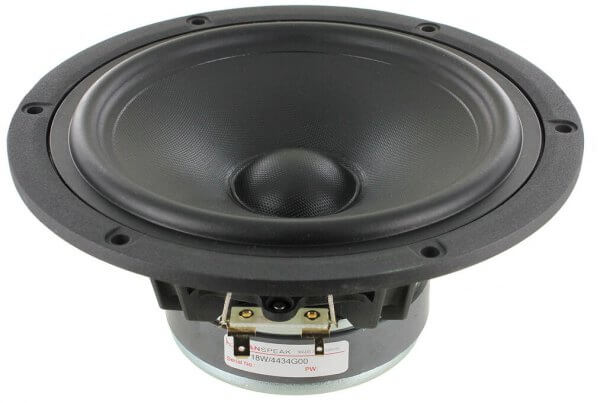

Scan Speak 18W/4434G00 Discovery

Scan Speak 18W/4434G00 Discovery Tief-/Mitteltöner

The Discovery series offer traditional design, superior sound, a solid construction, and a wide range of variants. Combining these elements - plus a wealth of technical features and finesses - it gives our customers the possibility of acquiring a tailor-made Scan-Speak solution with very good performance at a reasonable low price point!

T-S Parameters:

• Resonance frequency [fs]: 47 Hz

• Mechanical Q factor [Qms]: 7.81

• Electrical Q factor [Qes]: 0.37

• Total Q factor [Qts]: 0.35

• Force factor [Bl]: 6 Tm

• Mechanical resistance [Rms]: 0.55 kg/s

• Moving mass [Mms]: 14.41 g

• Suspension compliance [Cms]:  0.79 mm/N

• Effective diaph. diameter [D]: 132 mm

• Effective piston area [Sd]: 137 cm²

• Equivalent volume [Vas]: 20.7 l

• Sensitivity (2.83V/1m): 91.3 dB

• Ratio Bl/√Re: 3.48 N/√W

• Ratio fs/Qts: 134 Hz

Electrical Data:

• Nominal impedance [Zn]: 4 Ω

• Minimum impedance [Zmin]: 3.9 Ω

• Maximum impedance [Zo] 66.3 Ω

• DC resistance [Re]: 3 Ω

• Voice coil inductance [Le]: 0.39 mH


Power Handling:

• 100h RMS noise test (IEC 17.1): 55 W

• Long-term max power (IEC 17.3): 170 W


Voice Coil and Magnet Data:

• Voice coil diameter: 32 mm

• Voice coil height: 13.6 mm

• Voice coil layers: 2

• Height of gap: 5 mm

• Linear excursion: ± 4.3 mm

• Max mech. excursion: ± 8 mm

• Unit weight: 1.3 kg
