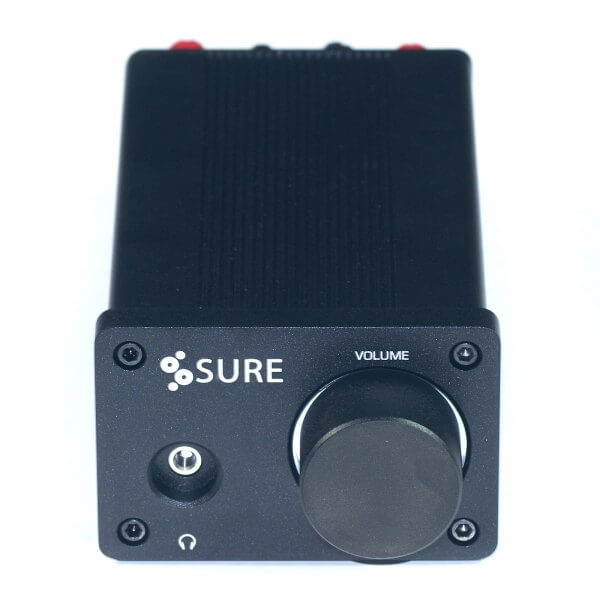

Wondom TDA250E-NT Vollverstärker Set

Digitaler Vollverstärker, basierend auf dem TDA7492 Chip. Der Verstärker hat einen Stereo Cincheingang und eine Ausgangsleistung von 2x50 Watt RMS. Während die Verwendung von hochwertigen elektronischen Bauteilen und das massive Aluminiumgehäuse und Lautstärkeregler für die Haptik und den ausgezeichneten Klang verantwortlich ist, setzt die dezent orangene Illuminierung des Lautstärkereglers das optische Highligt.

Inklusive hochwertigem Netzteil. Akku- / Batteriebetrieb ist ebenfalls über optionales Akkuboard möglich.

Im Paket enthalten:

1 x Digitalverstärker Wondom TDA250E, 1 x Wondom GST120A24-P1M Netzteil

English product description:

This product integrated with TDA7492 which is currently popular around the world, it not only provides dream sound but also has high efficiency, thus it can dissipate the heat after long-time working to ensure that the amplifier can works in a stable condition for long time.

Besides traditional RCA input jacks, a stereo phone jack is provided to make it much easier to be used with your second device such as mobile phone or portable players. A high quality headphone amplifier is also provided at the front panel.

This device integrates a high-quality rotary encoder which employs high-performance audio processor IC ensuring precise shaft rotation and accurate volume adjustment. AA-AS32171 supports dual-channel amplification and each channel is rated at 50W. With built-in MCU, this product can provide input/output auto-override, over/under voltage protection, low current protection and display LED state.

This product can be powered by any DC power supply ranging from 9 to 24V. You can use it to drive any 4Ω or 8Ω passive speakers.

Technical data:

• Size: 6.4“ x 2.9” x 1.9“
• Power supply: DC 9V to 24V
• Over / under voltage turn off
• Over current protection
• Over temperature protection
