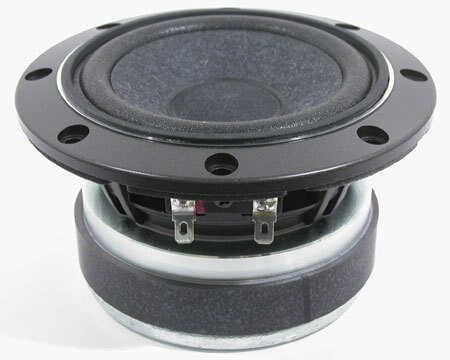

Fostex FW108N

Leistungsfähiger 4" (10cm) Tieftöner

Features:

• 100mm (4 in) cone type full range
• 8 ohm impedance

• fo to 10kHz frequency response

• 86dB sensitivity at 1W/1m (3.3ft)

• 1.695kg (3.7373 lb) net weight


Thiele/Small Parameters:

• Impedance : 8 ohm
• Minimum Frequency Response: 55Hz

• S.P.L. : 86dB/W (m)

• Rated Input : 17W

• Music Power : 50W

• Equivalent Diaghram Radius: 40mm (1.6 in)

• Reproduction Frequency Response: fo - 10kHz

• Equivalent Mass : 6.9g (0.015 lb)

• Magnet Weight : 500g (1.102 lb)

• Net Weight : 1.7kg (3.74 lb)

• Fs : 55Hz

• Re : 6.3 ohm

• Qes : 0.27

• Qms: 8.8
• Qts : 0.26

• Vas : 4.09 L

• Xmax : 1.9mm (0.075 in)

• no : 0.237%
