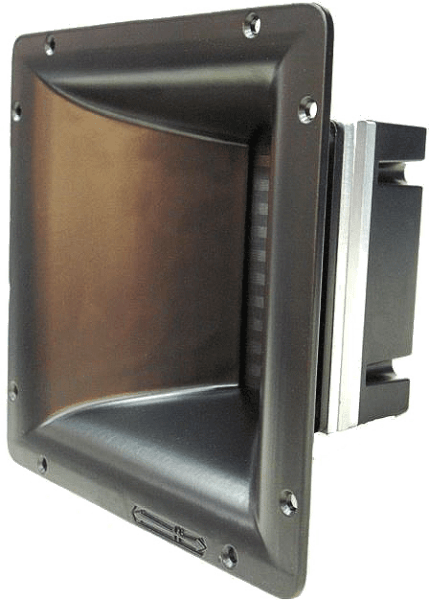

Beyma TPL-150H AMT

Beyma TPL-150H Air Motion Transformer mit Hornvorsatz

Key Features

•     Hervorragende Klangqualität
•     Erweiterter nutzbarer Frequenzbereich (700 Hz - 23 kHz)
•     Abstrahlverhalten: 80º horizontal und 30º vertikal
•     Hohe Empfindlichkeit (102dB)
•     Extrem linearer Frequenzgang
•     Geringe Verzerrungen

Technical Specifications

•     Rated impedance: 8 ohms
•     D.C Resistance: 4.9 ohms
•     Power capacity: 80 w AES above 1 kHz
•     Program power: 160 w above 1 kHz
•     Sensitivity: 102 dB 1w @ 1m
•     Frequency range: 0.7-23 kHz
•     Recommended crossover: 1kHz or higher (12dB/oct. min)
•     Horizontal beamwidth: 80º(+9º,-20º) (--6dB, 1.2-16 kHz)
•     Directivity factor (Q): 30º(+27º,-21º) (--6dB, 1.2-16 kHz)
•     Directivity index (DI): 27 (average 1.2-16 kHz) 13 dB (+6 dB, -4.5)
•     Cutoff frequency: 800 Hz
•     Overall dimensions (WxHxD): 230 x 230 x 148 mm (9.05 x 9.05 x 5.8 in.)
•     Cutout dimensions (WxH): 195 x 195 mm (7.68 x 7.68 in.)
•     Net Weight: 3.68kg (8.10 lb.)
•     Shipping Weight: 4.08 kg (8.76 lb.)
