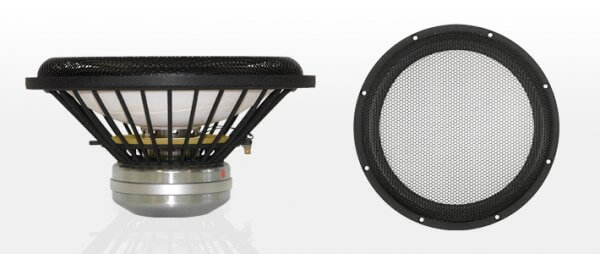

Accuton S280-6-282

11" (28cm)  Keramik- Sandwich Tieftöner, Neodymmagnet, 6 Ohm

Highlights:

• 11 inch sandwich cone bass with high efficiency for 3-way designs
• large sized voice coil with 55mm titanium voice coil former
• big, underhung 120mm Neodymium magnet system for very low distortion
• high mechanical excursion
• special multi spoke basket with improved airflow design

Vented box design parameters:

• Vb: 62L, Port diameter: 70mm, Length: 240mm, Fres: 25Hz, F-3dB: 38Hz, Q: 0.58 (optimal)
• Vb: 91L, Port diameter: 70mm, Length: 90mm, Fres: 29.5Hz, F-3dB: 31Hz, Q: 0.50 (extended bass)
• Vb: 54L, Port diameter: 70mm, Length: 170mm, Fres: 31Hz, F-3dB: 39Hz, Q: 0.61 (0.7dB Ripple @ 50Hz)

Closed Box design parameters:

• Vb: 39L, -5dB @ 40Hz, -17dB @ 20Hz, F-3dB: 50Hz, Q: 0.71 (typical)
• Vb: 101L, -5dB @ 40Hz, -13dB @ 20Hz, F-3dB: 51Hz, Q: 0.50 (extended bass)

Mechanical Data:

• Overall diameter/square: 280 mm

• Cutout diameter/square: 251,2 mm

• Frontplate depth: 8,45 mm

• Overall depth: 131,95 mm

• Motor assembly depth: 49 mm

• Motor assembly diameter: 120 mm

• Screw fitting:  DIN 7984, 4 mm

• Terminal: + : 6.3 x 0.8 / - : 4.8 x 0.8
• Shipping weight /net weight (one piece): 4,5 / 3,8 kg

• Shipping box size (pair): 300 / 145 / 300 mm

Thiele / Small Parameter:

• Sensitivity Lp (2.83V / 1m): 93 dB
• DC-resistance Re: 6,6 Ohm

• Resonance frequency Fs: 20 Hz

• Equivalent volume of air Vas: 226 L

• Mechanical Q Qms: 4,43

• Electrical Q Qes: 0,28

• Total Q Qts: 0,26

• Effective piston area Sd: 408 cm²

• Moving mass Mms: 65 g

• Suspension compliance Cms: 0,94 mm/N

• Mechanical resistance Rms: 1,87 kg * s

Voice Coil Data:

• Power handling P: 150 Watt

• Linear excursion xmax: +/- 6 mm

• Voice coil diameter: 55 mm

• Voice coil former material: Ti

• Voice coil material: Cu

• Voice coil inductance Le: 0,64 mH

• Force factor Bl: 14,1

• Motor type: Overhung
