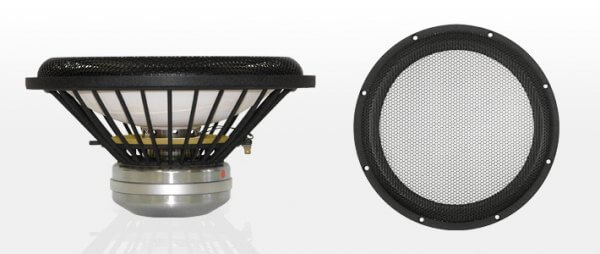

Accuton S280-18-282

Accuton Promotion

1.329,11 € *

inkl. MwSt. zzgl. Versandkosten

Lieferzeit 2-5 Werktage

Gesamtpreis:  €1.329,11 € *  €1.476,79 € * (10% gespart)
Stück
  • S28018282
11" (28cm) Keramik - Sandwich Tieftöner, Neodymmagnet, 18 Ohm Highlights: 11... mehr
Produktinformationen "Accuton S280-18-282"

11" (28cm) Keramik- Sandwich Tieftöner, Neodymmagnet, 18 Ohm

Highlights:

  • 11 inch sandwich cone bass with high efficiency for 3-way designs
  • large sized voice coil with 55mm titanium voice coil former
  • big, underhung 120mm Neodymium magnet system for very low distortion
  • high mechanical excursion
  • special multi spoke basket with improved airflow design


Vented box design parameters:

  • Vb: 62L, Port diameter: 70mm, Length: 240mm, Fres: 25Hz, F-3dB: 38Hz, Q: 0.58 (optimal)
  • Vb: 91L, Port diameter: 70mm, Length: 90mm, Fres: 29.5Hz, F-3dB: 31Hz, Q: 0.50 (extended bass)
  • Vb: 54L, Port diameter: 70mm, Length: 170mm, Fres: 31Hz, F-3dB: 39Hz, Q: 0.61 (0.7dB Ripple @ 50Hz)

Closed Box design parameters:

  • Vb: 39L, -5dB @ 40Hz, -17dB @ 20Hz, F-3dB: 50Hz, Q: 0.71 (typical)
  • Vb: 101L, -5dB @ 40Hz, -13dB @ 20Hz, F-3dB: 51Hz, Q: 0.50 (extended bass)


Mechanical Data:

  • Overall diameter/square: 280 mm
  • Cutout diameter/square: 251,2 mm
  • Frontplate depth: 8,45 mm
  • Overall depth: 131,95 mm
  • Motor assembly depth: 49.5 mm
  • Motor assembly diameter: 120 mm
  • Screw fitting:  DIN 7984, 4 mm
  • Terminal: + : 6.3 x 0.8 / - : 4.8 x 0.8
  • Shipping weight /net weight (one piece): 4,5 / 3,8 kg
  • Shipping box size (pair): 300 / 145 / 300 mm

Thiele / Small Parameter:

  • Sensitivity Lp (2.83V / 1m): 88.5 dB
  • DC-resistance Re: 18.5 Ohm
  • Resonance frequency Fs: 20 Hz
  • Equivalent volume of air Vas: 226 L
  • Mechanical Q Qms: 6.74
  • Electrical Q Qes: 0.27
  • Total Q Qts: 0.26
  • Effective piston area Sd: 408 cm²
  • Moving mass Mms: 63 g
  • Suspension compliance Cms: 0,94 mm/N
  • Mechanical resistance Rms: 1.22 kg * s

Voice Coil Data:

  • Power handling P: 150 Watt
  • Linear excursion xmax: +/- 6 mm
  • Voice coil diameter: 55 mm
  • Voice coil former material: Ti
  • Voice coil material: Cu
  • Voice coil inductance Le: 2.25 mH
  • Force factor Bl: 23.7
  • Motor type: Underhung
