Accuton C30-6-024

1,2" (3,00 cm) Keramik- Hochtöner, Neodymmagnet

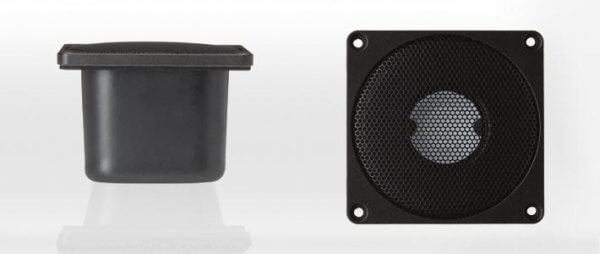

The C30 - 6 - 024 is a 1.2 tweeter with ultra hard ceramic dome in a 82 mm frontplate. Anti-resonant cutout fills in the ceramic dome provide for damping of the dome resonance. A neodymium overhung motor design with vented aluminium voice coil former guarantees low energy storage and excellent heat transfer. The soft fabric surround and ferrofluid with high viscosity center the moving parts with distinctive linearity. We recommend an application above 1800 Hz.

Mechanical Data:

•     Overall diameter/square: 82 mm
•     Cutout diameter/square: 64 mm
•     Frontplate depth: 5 mm
•     Overall depth: 57 mm
•     Motor assembly depth: -
•     Motor assembly diameter: -
•     Screw fitting:  DIN 7984, 4 mm
•     Terminal: + : 4,8 x 0.8 / - : 2.8 x 0.8
•     Shipping weight /net weight (one piece): 0,54 / 0,44 kg
•     Shipping box size (pair): 130 / 130 / 190 mm

 Thiele / Small Parameter:

•     Sensitivity Lp (2.83V / 1m): 93 dB
•     DC-resistance Re: 6,0 Ohm
•     Resonance frequency Fs: 930 Hz
•     Equivalent volume of air Vas: -
•     Mechanical Q Qms: 1,96
•     Electrical Q Qes: 1,06
•     Total Q Qts: 0,69
•     Effective piston area Sd: 8,55 cm²
•     Moving mass Mms: 0,4 g
•     Suspension compliance Cms: 0,073 mm/N
•     Mechanical resistance Rms: 1,2 kg * s

Voice Coil Data:

•     Power handling P: 120 Watt
•     Linear excursion xmax: +/- 0,5 mm
•     Voice coil diameter: 19,4 mm
•     Voice coil former material: Al
•     Voice coil material: Cu
•     Voice coil inductance Le: 0,03 mH
•     Force factor Bl: 3,64
•     Motor type: Overhung
•     Ferrofluid filling: yes
