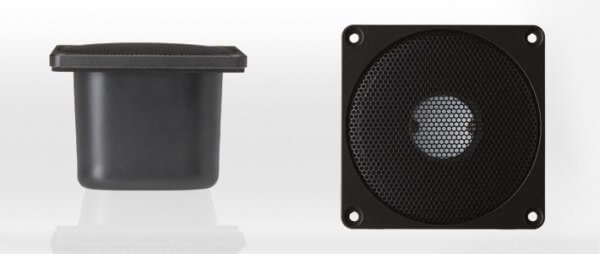

Accuton C25-6-012

1" (2,54 cm) Keramik- Hochtöner

The C25-6-012 is a 1 inch tweeter with ultra hard ceramic dome in a 82 mm frontplate. Anti-resonant cutout fills in the ceramic dome provide for damping of the 37 kHz dome resonance. An overhung motor design with vented aluminium voice coil former guarantees low energy storage and good heat transfer. The soft fabric surround and ferrofluid with high viscosity center the moving parts with excellent linearity. We recommend an application above 2500 Hz.


Mechanical Data:

•     Overall diameter/square: 82 mm
•     Cutout diameter/square: 64 mm
•     Frontplate depth: 5 mm
•     Overall depth: 57 mm
•     Motor assembly depth: -
•     Motor assembly diameter: -
•     Screw fitting:  DIN 7984, 4 mm
•     Terminal: + : 4,8 x 0.8 / - : 2.8 x 0.8
•     Shipping weight /net weight (one piece): 0,68 / 0,58 kg
•     Shipping box size (pair): 130 / 130 / 190 mm

 Thiele / Small Parameter:

•     Sensitivity Lp (2.83V / 1m): 90 dB
•     DC-resistance Re: 6,2 Ohm
•     Resonance frequency Fs: 740 Hz
•     Equivalent volume of air Vas: -
•     Mechanical Q Qms: 0,55
•     Electrical Q Qes: 1,19
•     Total Q Qts: 0,38
•     Effective piston area Sd: 5,94 cm²
•     Moving mass Mms: 0,23 g
•     Suspension compliance Cms: 0,141 mm/N
•     Mechanical resistance Rms: 1,91 kg * s

 Voice Coil Data:

•     Power handling P: 120 Watt
•     Linear excursion xmax: +/- 0,6 mm
•     Voice coil diameter: 16,4 mm
•     Voice coil former material: Al
•     Voice coil material: Cu
•     Voice coil inductance Le: 0,02 mH
•     Force factor Bl: 2,35
•     Motor type: Overhung
•     Ferrofluid filling: yes
