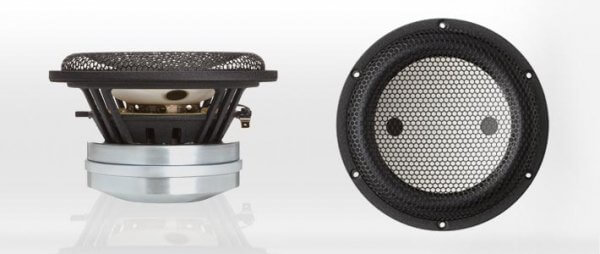

Accuton C173-6-090

7" (17cm) Keramik Mitteltöner, Cutoffs, 6 Ohm

Highlights:

• 7 inch midrange with tissue suround with high efficiency  for 3 way designs
• large sized voice coil with 55mm titanium voice coil former for high midrange resolution
• big, underhung 120mm Neodymium magnet system for very low distortion
• Anti-resonant cutout fills in the ceramic dome provide high damping of the 4 kHz dome resonance.

Vented box design parameters:

• Vb: 10L, Port diameter: 50mm, Length: 250mm, Fres: 45Hz, F-3dB: 51Hz, Q: 0.58 (optimal)
• Vb: 14,5L, Port diameter: 50mm, Length: 175mm, Fres: 43.5Hz, F-3dB: 44Hz, Q: 0.50 (extended bass)
• Vb: 8,5L, Port diameter: 50mm, Length: 260mm, Fres: 48Hz, F-3dB: 56Hz, Q: 0.61 (0.7dB Ripple @ 100Hz)

Closed Box design parameters:

• 2L, -13dB @ 80Hz, F-3dB: 160Hz, Q: 0.71 (typical)
• 4.5L, -10dB @ 80Hz, F-3dB: 170Hz, Q: 0.50 (clean transient response)

Mechanical Data:

• Overall diameter/square: 173 mm

• Cutout diameter/square: 145,6 mm

• Frontplate depth: 6,35 mm

• Overall depth: 96,35 mm

• Motor assembly depth: 44 mm

• Motor assembly diameter: 120 mm

• Screw fitting:  DIN 7984, 4 mm

• Terminal: + : 6.3 x 0.8 / - : 4.8 x 0.8

• Shipping weight /net weight (one piece): 3.76 / 3.44 kg

• Shipping box size (pair): 210 / 280 / 210 mm

Thiele / Small Parameter:

• Sensitivity Lp (2.83V / 1m): 93 dB

• DC-resistance Re: 6.61 Ohm

• Resonance frequency Fs: 57 Hz

• Equivalent volume of air Vas: 15.5 L

• Mechanical Q Qms: 3.75

• Electrical Q Qes: 0.26

• Total Q Qts: 0.26

• Effective piston area Sd: 133 cm²

• Moving mass Mms: 14 g

• Suspension compliance Cms: 0.56 mm/N

• Mechanical resistance Rms: 1.32 kg * s

Voice Coil Data:

• Power handling P: 120 Watt

• Linear excursion xmax: +/- 5 mm

• Voice coil diameter: 55 mm

• Voice coil former material: Ti

• Voice coil material: Cu

• Voice coil inductance Le: 0.19 mH

• Force factor Bl: 11.6

• Motor type: Underhung

• Ferrufluid filling: no
