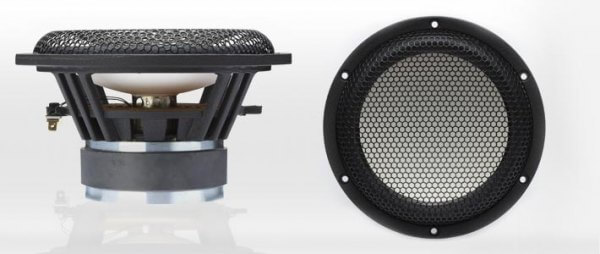

Accuton C158-8-085

6.25" (15cm) Keramik Tief-/ Mitteltöner, 8 Ohm

Highlights:

• 6.25 inch bass-midrange for small bookshelf monitors or slim floorstanders
• small and light voice coil with 25mm titanium voice coil former for high midrange resolution
• long excursion design for high SPL capabilities

Vented Box design parameters:

• Vb: 15L, Port diameter: 50mm, Length: 190mm, Fres: 41Hz, F-3dB: 45Hz, Q: 0.58 (typical)
• Vb: 22L, Port diameter: 50mm, Length: 130mm, Fres: 40Hz, F-3dB: 40Hz, Q: 0.50 (extended bass)
• Vb: 12L, Port diameter: 50mm, Length: 200mm, Fres: 45Hz, F-3dB: 49Hz, Q: 0.61 (0.7dB Ripple @ 100Hz)

Closed Box design parameters:

• Vb: 8.5L, -11dB @ 40Hz, F-3dB: 70Hz, Q: 0.71 (typical)
• Vb: 22L, -8.5dB @ 40Hz, F-3dB: 70Hz, Q: 0.50 (extended bass)

Mechanical Data:

• Overall diameter/square: 158 mm

• Cutout diameter/square: 137 mm

• Frontplate depth: 6,0 mm

• Overall depth: 82 mm

• Motor assembly depth: 34  mm

• Motor assembly diameter: 85  mm

• Screw fitting: DIN 7984, 4 mm

• Terminal: + : 6.3 x 0.8 / - : 4.8 x 0.8
• Shipping weight /net weight (one piece): 1.75 / 1.65 kg

• Shipping box size (pair): 180 / 180 / 240 mm

Thiele / Small Parameter:

• Sensitivity Lp (2.83V / 1m): 89 dB
• DC-resistance Re: 7,8 Ohm

• Resonance frequency Fs: 33 Hz

• Equivalent volume of air Vas: 35 L

• Mechanical Q Qms: 4,12

• Electrical Q Qes: 0,34

• Total Q Qts: 0,31

• Effective piston area Sd: 113 cm²

• Moving mass Mms: 11,6 g

• Suspension compliance Cms: 1,89 mm/N

• Mechanical resistance Rms: 0,53 kg * s

Voice Coil Data:

• Power handling P: 100 Watt

• Linear excursion xmax: +/- 5 mm

• Voice coil diameter: 25 mm

• Voice coil former material: Ti

• Voice coil material: Cu

• Voice coil inductance Le: 0,54 mH

• Force factor Bl: 7,5

• Motor type: Overhung
